Cookies for X-keys Matrix Board

All cookies for the X-keys Matrix Board have values of either 0 or 1. For the cookies corresponding the keys a value of 0 means the key is up or not pressed and a value of 1 means the key is down or pressed. The values of the cookies are listed below for several other pieces of information. The Button # in HID Explorer equals Cookie #-4.

Vendor ID: 1523 (5F3h), PID: 618 (26Ah)

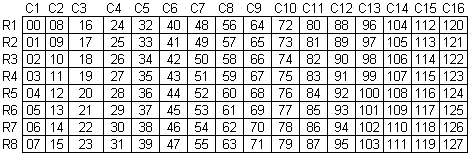

Key IDs for the X-keys Editor:


Input Cookies for keys:

Key ID (see above picture) Cookie
0 5
1 6
2 7
3 8
4 9
5 10
6 11
7 12
8 13
9 14
10 15
11 16
12 17
13 18
14 19
15 20
16 21
17 22
18 23
19 24
20 25
21 26
22 27
23 28
24 29
25 30
26 31
27 32
28 33
29 34
30 35
31 36
32 37
33 38
34 39
35 40
36 41
37 42
38 43
39 44
40 45
41 46
42 47
43 48
44 49
45 50
46 51
47 52
48 53
49 54
50 55
51 56
52 57
53 58
54 59
55 60
56 61
57 62
58 63
59 64
60 65
61 66
62 67
63 68
64 69
65 70
66 71
67 72
68 73
69 74
70 75
71 76
72 77
73 78
74 79
75 80
76 81
77 82
78 83
79 84
80 85
81 86
82 87
83 88
84 89
85 90
86 91
87 92
88 93
89 94
90 95
91 96
92 97
93 98
94 99
95 100
96 101
97 102
98 103
99 104
100 105
101 106
102 107
103 108
104 109
105 110
106 111
107 112
108 113
109 114
110 115
111 116
112 117
113 118
114 119
115 120
116 121
117 122
118 123
119 124
120 125
121 126
122 127
123 128
124 129
125 130
126 131
127 132

Other Input Cookies:

Description Cookie
Unit ID bit 1 133
Unit ID bit 2 134
Unit ID bit 3 135
Unit ID bit 4 136
Unit ID bit 5 137
Unit ID bit 6 138
Unit ID bit 7 139
Unit ID bit 8 140
Program Switch position 144 (0=down, 1=up)

Unit ID=(cookie 133)+2*(cookie 134)+4*(cookie 135)+8*(cookie 136)+16*(cookie 137)+32*(cookie 138)+64*(cookie 139)+128*(cookie 140)

Output Cookies:

Description/value Cookie
=0 to write LEDs, =1 to write Unit ID 149
=0 all times 150
=0 all times 151
=0 to write LEDs, =1 to write Unit ID 152
=0 all times 153
=0 all times 154
=0 all times 155
=0 to write LEDs, =1 to write Unit ID 156
=0 to write LEDs, =1 to write Unit ID 157
=0 all times 158
=0 all times 159
=0 to write LEDs, =1 to write Unit ID 160
=0 all times 161
=0 all times 162
=0 all times 163
=0 to write LEDs, =1 to write Unit ID 164
=0 all times 181
=0 all times 182
=0 all times 183
=0 all times 184
=0 all times 185
=0 all times 186
=0 all times 187
=0 all times 188
=0 all times 189
=0 all times 190
=0 all times 191
=0 all times 192
=0 all times 193
=0 all times 194
=0 all times 195
=0 all times 196
Unit ID bit 1 197
Unit ID bit 2 198
Unit ID bit 3 199
Unit ID bit 4 200
Unit ID bit 5 201
Unit ID bit 6 202
Unit ID bit 7 203
Unit ID bit 8 204
=0 all times 205
=0 all times 206
=0 all times 207
=0 all times 208
=1 to write Unit ID 209
=0 all times 210
Green LED, 0=off, 1= on 211
Red LED, 0=off, 1=on 212
