ReDAC Input Output Module by P.I. Engineering

Real World Display and Control

ReDAC IO Module showing two DB25 connectors and indicating LEDs

USB Connection to Computer
Standard DB25 connection to hardware
23 Analog Inputs
46 Digital Inputs
24 Digital Outputs
Supported by P.I. Engineering SDK

The ReDAC Input / Output Module offers simulation developers easy access to the state of 46 switches and 23 potentiometers and output to 24 low current components. The outputs are suitable for lighting LEDs, triggering optic relays, or actuating any low current device.

The hardware provides a reliable link between the controls and the computer and our free Software Development Kit offers straight forward tools to tie the data to your application.

ReDAC IO Module

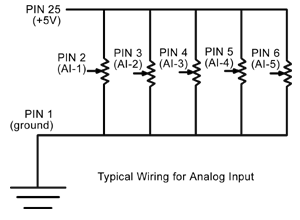

wiring potentiometers to analog inputs on the ReDAC input output module

Typical Application

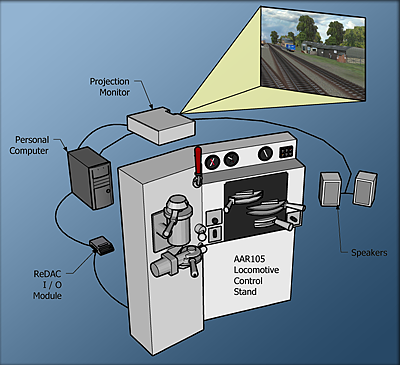

The ReDAC I/O Module connecting a full sized locomotive control stand to a PC, projection monitor, and speakers.

ReDAC Input/Output Module connecting a locomotive control stand to a PC, driving a projection monitor and speakers

Changes in the position of levers and switches on the control stand are read by the ReDAC I/O Module and sent to the PC.

The P.I. Engineering SDK shows the software developer where to receive and send live data from and to the ReDAC.

The simulation software takes input from the ReDAC, drives the monitor and sound system, and triggers indicator LEDs as warning signals on the control stand.

A separate ReDAC Gauge Module translates data on pressure and electric current from the simulator to the gauges.
