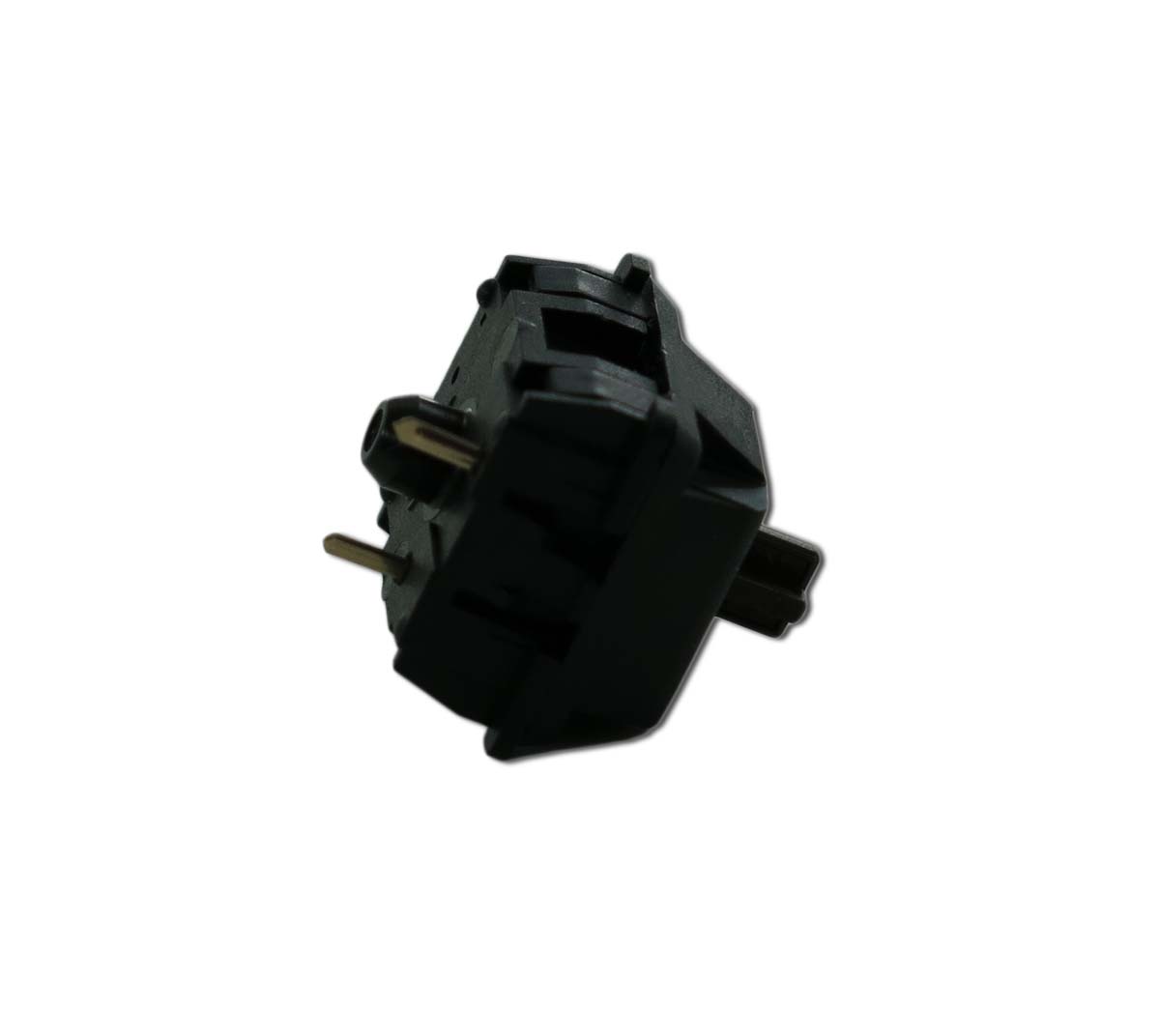

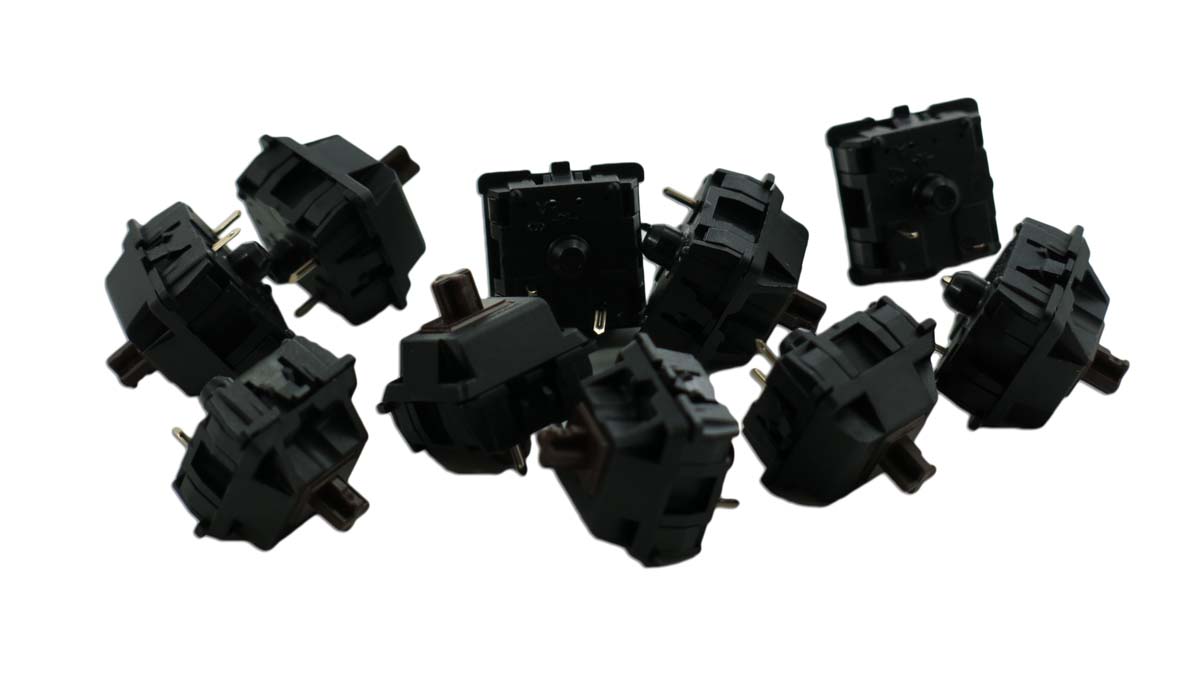

Cherry Key Switches

• Perfect for use with the X-keys Matrix Board
• The same rugged, reliable mechanical switch used in our Legacy X-keys keyboards
• Cherry MX style brown stem with silent, tactile feel, SPST Normally Open
• Accepts our X-keys Keycaps
• Body = 0.61" square by 0.46" hugh (15.6mm x 11.6mm)

10 pack of Cherry MX Switches

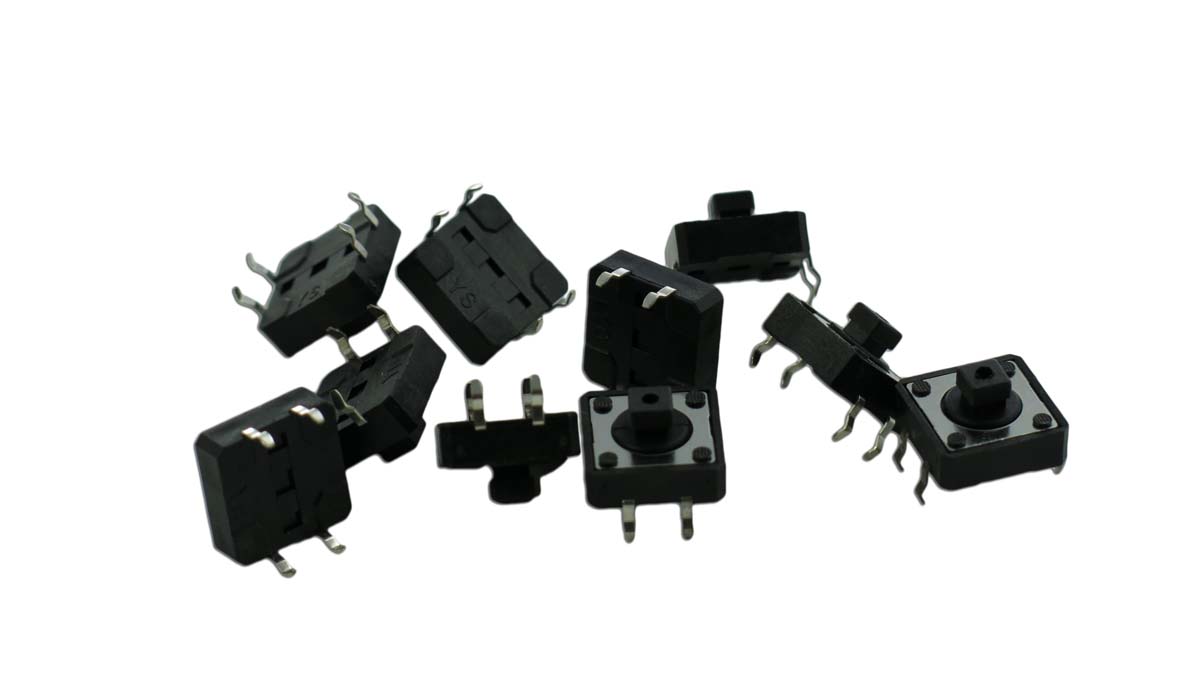

Low Profile Tactile Feel Switches

• Perfect for use with the X-keys Matrix Board
• The same low profile switch we use in our X-keys Stick
• DPST Normally Open
• Body = 0.47" square by 0.15" high (12mm x 3.8mm)
• Accepts our X-keys Stick Keycaps

10 pack of Low-Profile Tactile Switches

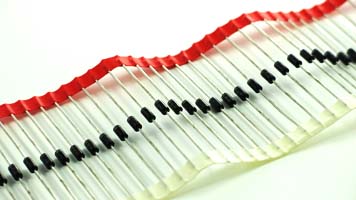

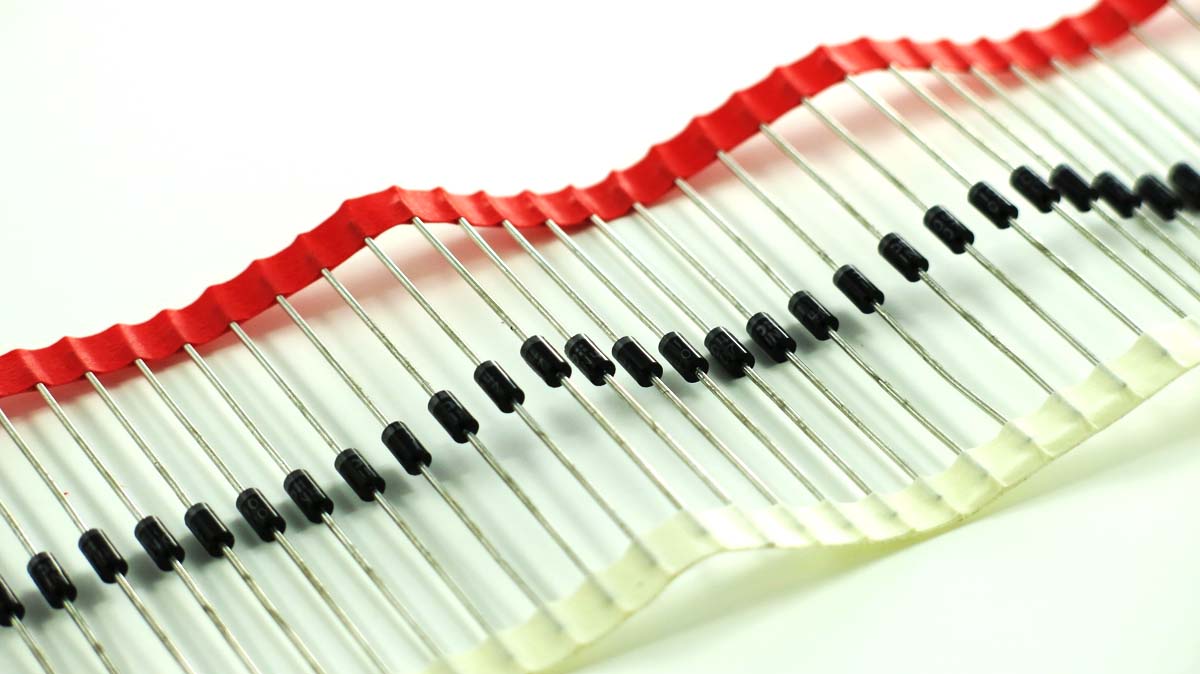

Diodes

• Perfect for use with the X-keys Matrix Board
• Long leads for easy soldering to switches and wires
• Packages in bags of 50
• Wire one to each switch to prevent key "ghosting"

50 pack of diodes for the X-keys Matrix Board
