Big Buddy Button Switch
Big Buddy Buttons to work with the X-keys USB 12 Switch Interface
- Rugged design for Assistive Technology or industrial applications
- Trigger computer commands with fingers, toes, knees, or elbows
- 30 day full refund return policy

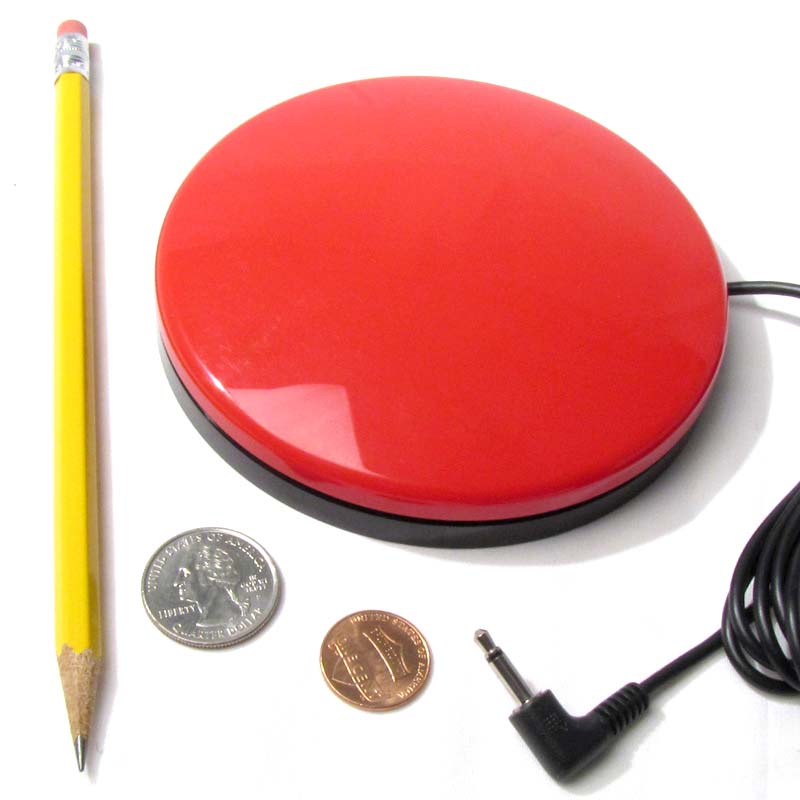

Big Buddy Button Switch
- 4.5" diameter (114mm)
- Pressure activated with auditory click
- Activation force: 5.3oz (150g)
- Available in red, green, and yellow
- Mounting: non-skid pad included plus base accepts two #6-32 machine screws
For a smaller option try our Buddy Button Switch:
 |
Buddy Button Switch
|
Big Buddy Button Switch Specifications
Diameter |
4.5" (114mm) |
Height |
1" (25mm) |
Weight |
4.4 oz (123g) |
Actuation Force |
10.7 oz (300g) at center, 5.3oz (150g) on outside edge |
| Switch Travel | Activation: 0.02" (0.5mm), Full travel: 0.08" (2mm) |
Cord Length |
5ft (1.5m) |
Connector Type |
1/8" (3.5mm) right angle mono plug |
Threaded Inserts |
#6-32, brass x 2 |
| Insert Spacing | 1.25" (30mm) O.C. - centered on switch body |
Voltage |
Less than 30 volts |
Current |
Less than 1 Amp |
Conductors |
Rated for Severe Duty |
RoHS |
Compliant |

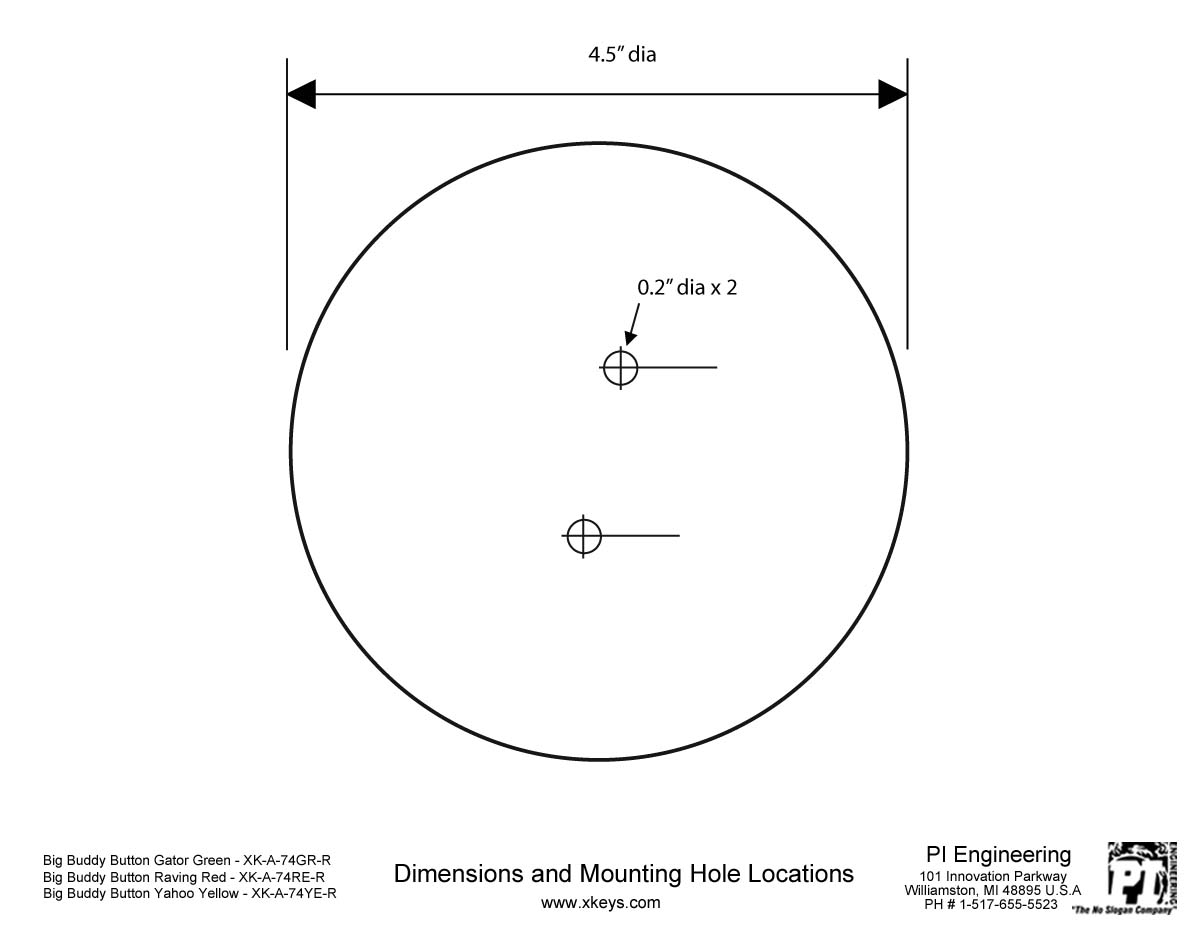

Download PDF: Big Buddy Button Switch DD.pdf
Programs
- Game Show Judging Triggers
- Assistive Technology
- Xnote Stopwatch
When connected to the X-keys USB 12 Switch Interface these Big Buddy Button Switch can control any computer based application. Here are a few examples.
